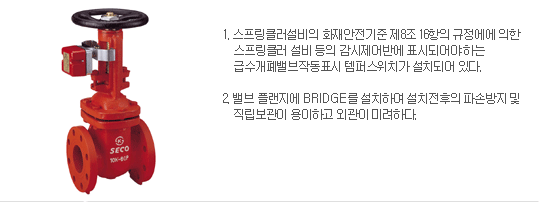

| 구분 | OS & Y GATE VALVE |
| SGT-71 |
| WORKING PRESSURE | 10kg/cm² |
| APPLICABLE TEMPERATURE | Max.80℃ |
| APPLICABLE FLUID | Water |
| TAMPER SWITCH | Open/Close Signal Switch Elec. Rating, DC 24V/6A, AC 220V/10A |
| CONNECTION METHOD | KS 10K FF Flange |
| HYDRO. TEST PRESSURE | BODY | 20kg/cm² - 2min |
| SEAT | 15kg/cm² - 1min (Air 6kg/cm²) |
| METERIALS | BODY, BONNET | GC 200 |
| DISC/BODY SEAT RING | YBsC 3, BC 6 |
| DISC | GC 200 |
| STEM | C 3771 BE |
| SIZE | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| L | 180 | 190 | 200 | 230 | 250 | 270 | 290 |
| D | 155 | 175 | 185 | 210 | 250 | 280 | 330 |
| H(OPEN) | 465 | 526 | 600 | 663 | 790 | 920 | 1125 |
| NO | DESCRIPTION |
| 1 | BODY |
| 2 | COVER |
| 3 | DISC |
| 4 | DISC SEAT RING |
| 5 | PACKING |
| 6 | YOKE SLEEVE |
| 7 | HANDWHEEL |
| 8 | VALVE STEM |
|
|
|
