| MODEL NO. | SAS-71N |
| WORKING PRESSURE | 1.5kg/cm² ~ 22kg/cm² |
| APPLICABLE TEMPERATURE | Max. 80℃ |
| APPLICABLE FLUID | Water |
| MIN. OPERATION PRESSURE | 0.4~0.8kg/cm² |
| ELECTRICAL RATING | DC 24V |
| CONNECTION METHOD | PT 3/8 |

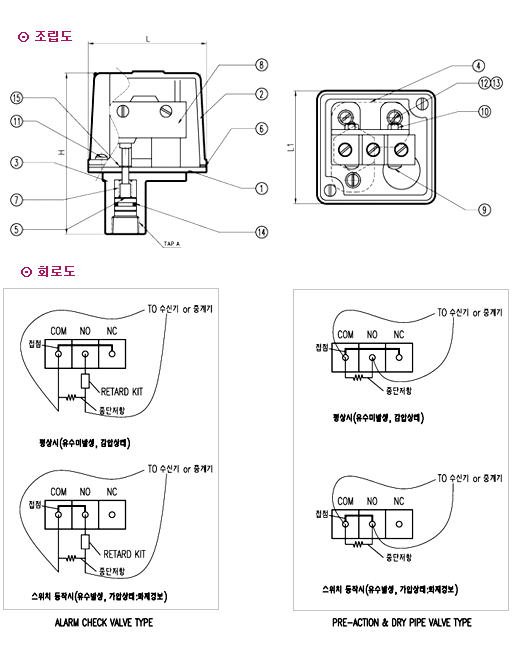

| NO | DESCRIPTION | MATERIAL |
| 1 | BASE | SS 400 |
| 2 | COVER | A.B.S |
| 3 | SUPPORT | C 3604 BE |
| 4 | CLAMP | SS400 |
| 5 | PISTON | C 3604 BE |
| 6 | GASKET | N.B.R |
| 7 | SPRING | STS 304 WPB |
| 8 | MICRO SWITCH | - |
| 9 | SWITCH BOLT | SS400 |
| 10 | SWITCH NUT | SS400 |
| 11 | COVER BOLT | SS400 |
| 12 | CLAMP BOLT | SS400 |
| 13 | SPRING WASHER | SS400 |
| 14 | O-RING | SILICONE |
| 15 | E-RING | SS400 |
|
|
|
